getChartBarHeng(id, xData, yData) { //横向柱状图
let that = this;
let echarts = that.$echarts;
var chartDom = document.getElementById(id);
var myChart = echarts.init(chartDom);
var option;
option = {
tooltip: {
axisPointer: {
type: "shadow",
},
},
grid: {
top: '3%',
left: "3%",
},
xAxis: {
type: 'value',
splitLine: {
show: false //去掉辅助线
},
axisLine: {
show: false,
},
axisLabel: {
show: false,
}
},
yAxis: {
type: 'category',
data: yData,
splitLine: {
show: false //去掉辅助线
},
axisLine: {
show: false,
},
axisTick: {
show: false
},
axisLabel: {
inside: true,
margin: 0,
textStyle: {
color: '#fff', //值的颜色
fontSize: 16,
verticalAlign: "bottom",
align: "left",
padding: [0, 0, 10, 0],
},
}
},
series: [{
data: xData,
type: 'bar',
showBackground: true,
backgroundStyle: {
color: '#253E7D',
borderRadius:5
},
barWidth: 10,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [{
offset: 0,
color: '#39ACE2'
},
{
offset: 1,
color: '#14FCFC'
}
], false),
barBorderRadius: [5, 5, 5, 5],
}
},
label: {
normal: {
show: true,
position: [430, -20], //value的位置
color: '#fff', //值的颜色
fontSize: 16,
}
}
}]
};
option && myChart.setOption(option);
}

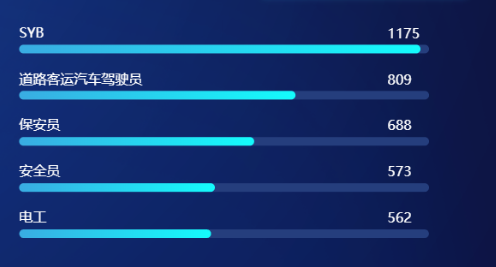

效果图
